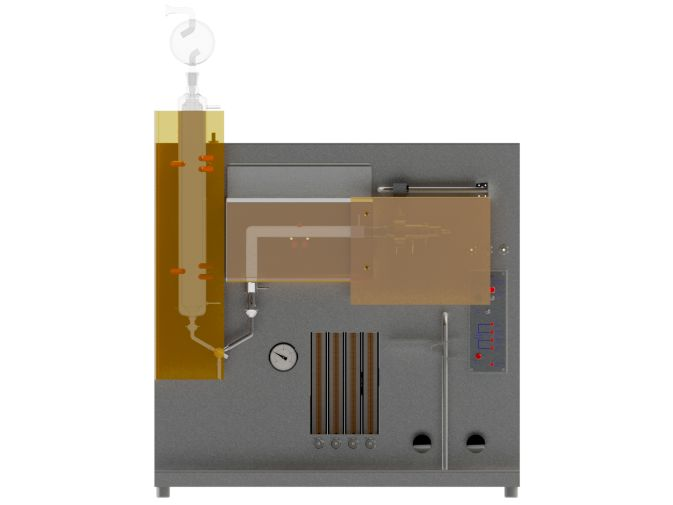

Combustion Apparatus

(Wickbold Method)

Peralatan kami yang memiliki pembakar Oxy-hidrogen digunakan untuk menentukan sulfur total dengan metode Wickbold.

Contact Us

Metode pengujian ini mencakup penentuan total sulfida dalam gas minyak cair yang mengandung lebih dari 1 g / g. Sampel harus mengandung kurang dari 100 g / g halogen.

Standar ASTM D2784, AFNOR M41-009, ISO 4260, IP 243, DIN 51408
Acuan normatif untuk peralatan ini relatif tua, tetapi masih berlaku di beberapa laboratorium, di industri dan penelitian. Peralatan ini menawarkan kemungkinan bagi laboratorium untuk memperoleh, dengan biaya yang lebih rendah, peralatan untuk penentuan total sulfur dan kemungkinan fluor.

Peralatan Pengukuran Sulfur / Nitrogen Lainnya
RAK SO2 dan NO2: Rak pengukur belerang atau nitrogen kontinu dalam gas, misalnya CO2 makanan. Dengan bangku permeasi internal dan tabung COS bersertifikat.

Principle: WICKBOLD Method

Sulfur measurement in:

  • Petroleum products, samples with 0.1 to 300 ppm
  • Distillates from 1 to 10 000 ppm

Safety:
"Safety" functions that automatically shuts off the Hydrogen by closing solenoid valves (EV) in case of:

  • opening of the protective cover during combustion
  • reduced cooling water pressure
  • decrease of the Depression of the vacuum in the fluid circuit
  • decrease of oxygen pressure

Supply Gas:

  • Oxygen: 99.5 % - 3 bar
  • Hydrogen: 99.5 % - 3 bar

Electric:

  • 110 V / 230 V
  • 60Hz – 50 Hz
  • 500 W

Température: Stainless steel Burner, up to 2000 °C

Measurement of sulphur, fluorine, carbon, etc. in petroleum products and all sample types requiring combustion.

Samples are burnt with an oxyhydrogen blow-torch (burner). The liquid produced during combustion is collected and analysed with the use of other equipment or other measurement techniques.

According standards:
ASTM D2784, ASTM D2785, ASTM D 2384, NF EN 24260, ISO 4260, IP 243

  • Refrigerated absorber in Pyrex equipped of a sintered
  • Refrigerated vigreux tip absorber
  • Sampling Reservoir:
    For LPG samples and natural gas as well as refining gas
  • Refrigerated vigreux tip absorbe
