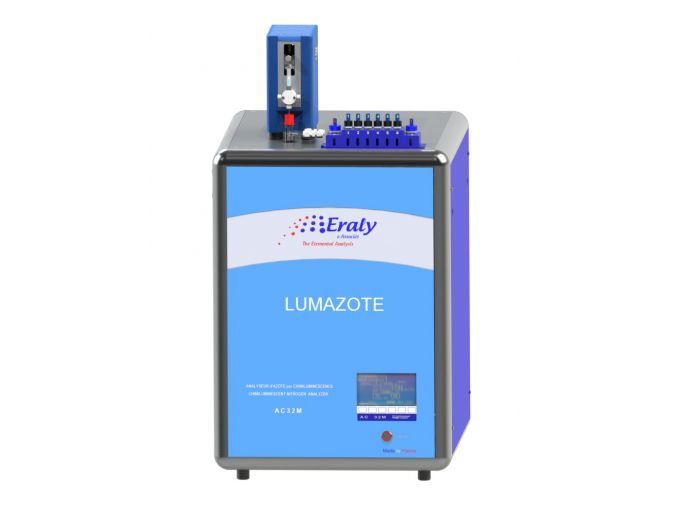

Total Nitrogen Analyzer

Dirancang untuk memenuhi kebutuhan spesifik kilang minyak, penganalisis nitrogen ini dikembangkan bekerja sama dengan TOTAL Research Center. Partisipasi pengguna akhir ini dalam desainnya membenarkan tingkat kinerja, ketahanan, dan kemudahan penggunaan yang tinggi.

Contact Us

Ini memungkinkan untuk:
  • Secara otomatis dan cepat mengukur kandungan nitrogen yang sangat rendah dari produk minyak bumi, hingga 30 ppb (dalam kondisi penggunaan tertentu, kinerja yang diperoleh dapat jauh lebih tinggi daripada yang diumumkan)
  • Ukur konsentrasi nitrogen tinggi, hingga 10% di semua jenis sampel (padat, cair, gas)

Nitrogen analyzer by Chemiluminescence, according to ASTM D4629, ASTM D6069...
It can be combined with the injector or liquid automatic sampler, or the Gas / LPG sampler.

Principle: Combustion – UV Fluorescence

Detection Limit: 10 ppb to 10%

Quantification: 20 ppb to 10%

Accuracy / RSD:

  • At 0.1 ppm: 0.61 %
  • At 1 ppm: 0.48 %
  • At 100 ppm: 1.04 %

Injections:

  • 20 to 80 µl liquids
  • 1 to 25 ml gas
  • 10µL LPG

Supply Gas:

  • Oxygen: 99.998% - 3 bar
  • Argon: 99.995 % - 3 bar

Electric:

  • 110 V / 230 V
  • 60Hz – 50 Hz
  • 1200 W

Temperature:

  • Furnace F2 25 to 1050°C
  • Furnace F1 programmable 25 to 980°C

Nitrogen measurement in petroleum products, solvents, oils, synthetic products, LPG, gas, plastic…

According standards:
ASTM D4629, ASTM D6069, ASTM D5176, ASTM D5762, NF EN 12260

  • Horizontal furnace configuration / compatible with syringe pusher
    All types of samples: Solids, Liquids, Gaseous
  • Vertical furnace configuration / compatible with auto injector
    All types of samples: Solids, Liquids, Gaseous
  • Liquid Automatic Sampler up to 50 positions
  • Automatic sampler for Gas and/or LPG, with 2 injections loops
  • Mini automatic injector, for liquid samples from 5 to seven positions
  • Auto introductor for solids samples with boat support
